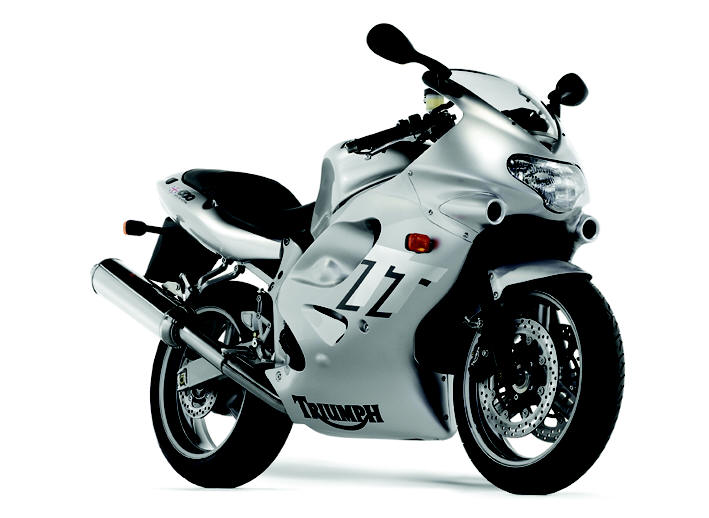

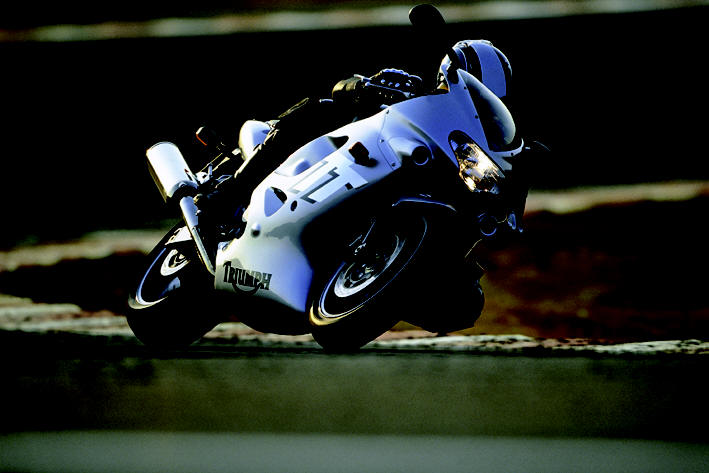

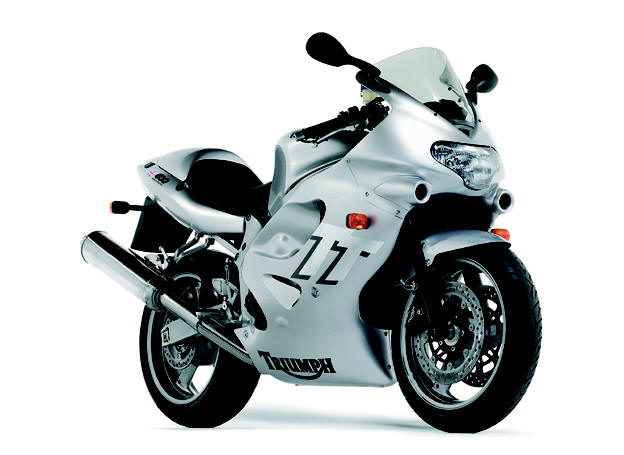

TT600
With the TT600, Triumph has taken on all-comers in a class that has been for so long dominated by Japanese manufacturers.
Last year’s subtle engine modifications and revised fuel-injection mapping have developed the machine to new levels of performance and rideability, and this coupled with the TT’s already renowned handling and braking has confirmed its place as a genuine alternative to other, more established, machinery.
Delivering seamless power, the high-revving 599cc, fuel-injected engine features a highly sophisticated, ultra light forged piston design with ‘upper land’ grooves, individual cigar type coils, a compact, lightweight, oil-cooled, rare earth magnet alternator and lightweight, Nikasil-coated individual aluminium cylinders for optimum heat transfer, durability and low friction.
The agile chassis, noted for its exceptional ground clearance, features a lightweight yet hugely rigid, twin-spar aluminium frame, multi-adjustable suspension, lightweight cast aluminium wheels (to minimise unsprung weight) and powerful, progressive brakes. Add to this real-world ergonomics, user-friendly digital instruments, sophisticated paint schemes and subtle graphics – including new for 2003 options of Tornado Red or Aluminium Silver – and you have perhaps one of the most understated machines on the road.
Colour Options
Jet Black
Tornado Red

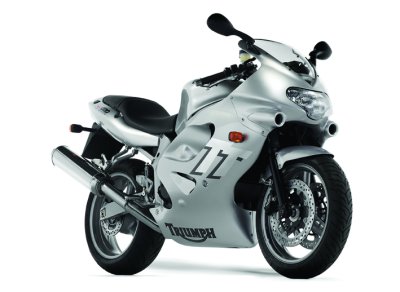

Aluminium Silver

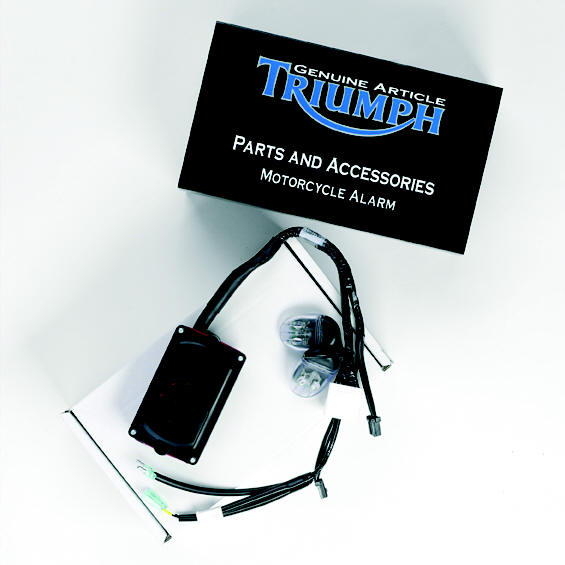

Alarm/Immobiliser (Thatcham
Category MC1 compliant)
Tank Bag

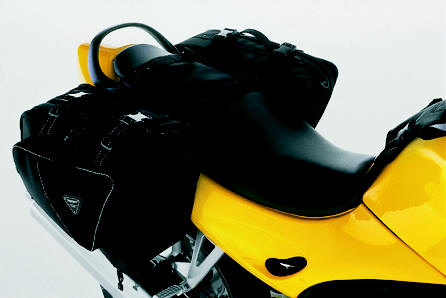

Throwover Panniers
Aero Screen
Colour Co-ordinated Seat Cowl

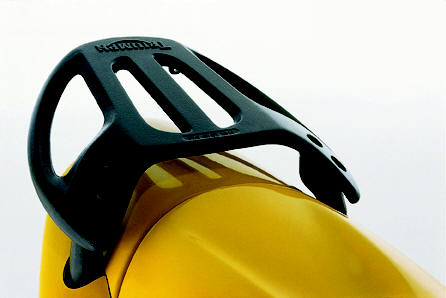

Luggage Rack

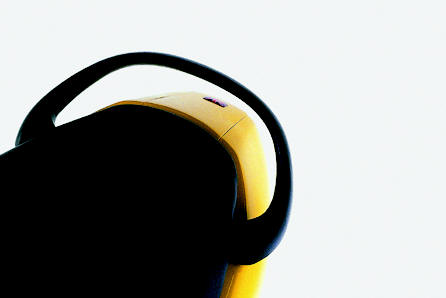

Grab Rail
Rear Hugger

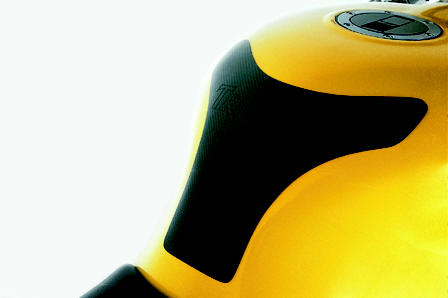

Carbon Fibre Tank Pad
Front Mudguard Extension Kit
Rear Mudguard Extension Kit
34PS Restrictor Kit
Shop our online store TRIUMPHeSTORE.com
Hermy's is a Triumph Triple Connection Stocking Dealer
 |
 |
 |
 |
 |
 |
 |
 |
|
Click on images for |
|||
|
ENGINE |
|
|
Type |
Liquid-cooled, DOHC, in-line 4-cylinder |
|
Capacity |
599cc |
|
Bore/Stroke |
68 x 41.3mm |
|
Compression Ratio |
12.5:1 |
|
Fuel System |
Multipoint sequential electronic fuel injection with forced air induction |
|
Ignition |
Digital – inductive type – via electronic engine management system |
|
TRANSMISSION |
|
|
Primary Drive |
Gear |
|
Final Drive |
X ring chain |
|
Clutch |
Wet, multi-plate |
|
Gearbox |
6-speed |
|
CYCLE PARTS |
|
|
Frame |
Aluminium beam perimeter |
|
Swingarm |
Twin-sided, aluminium alloy |
|
Wheels Front |
Alloy 3-spoke, 17 x 3.5in |
|
Rear |
Alloy 3-spoke, 17 x 5.5in |
|
Tyres Front |
120/70 ZR 17 |
|
Rear |
180/55 ZR 17 |
|
Suspension Front |
43mm forks with dual rate springs and adjustable preload, compression and rebound damping |
|
Rear |
Monoshock with adjustable preload, compression and rebound damping |
|
Brakes Front |
Twin 310mm floating discs, 4 piston calipers |
|
Rear |
Single 220mm disc, single piston caliper |
|
DIMENSIONS |
|
|
Length |
2060mm (81.1in) |
|
Width (Handlebars) |
690mm (27.2in) |
|
Height |
1150mm (45.3in) |
|
Seat Height |
810mm (31.9in) |
|
Wheelbase |
1395mm (54.9in) |
|
Rake/Trail |
24.6°/89.1mm |
|
Dry Weight |
170kg (374lb) |
|
Fuel Tank Capacity |
18 litres (4.7 gal US) |
|
PERFORMANCE (Measured at crankshaft to DIN 70020, excludes effect of forced air induction) |
|
|
Maximum Power |
110PS (108bhp) at 12,750rpm |
|
Maximum Torque |
68Nm (50.5ft.lbf) at 11,000rpm |
|
Warranty |
2 years, unlimited mileage |
|
Service Intervals |
4000 miles or one year, whichever comes first |
Riders Association Triumph Membership Included
