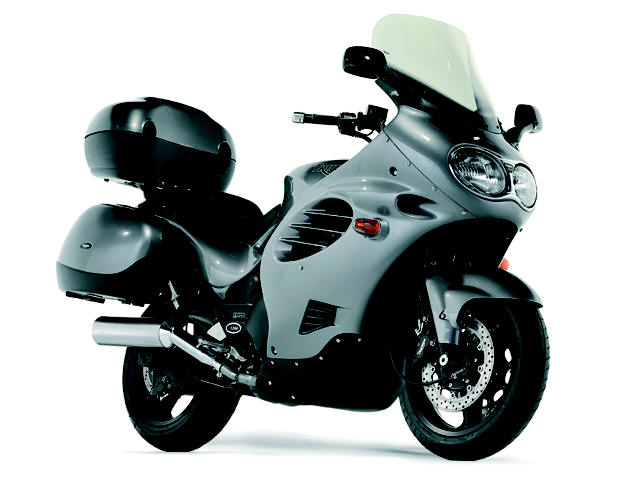

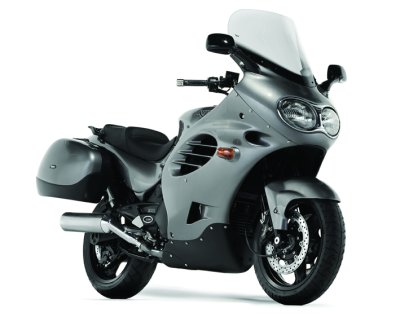

Trophy 1200
When a motorcycle continues to be in demand year after year, there’s undoubtedly an attraction and a charm to it that goes way beyond mere specification. The enduring Trophy is one such machine – powerful, supremely comfortable and with a capacious fully-integrated luggage system. It’s a no-nonsense, big-bore tourer in the grand style.
Behind the aerodynamically-efficient and massively protective fairing lies the heart of the machine, the potent 1180cc four-cylinder engine, cranking out a huge 104Nm (77ft lbs) of torque at only 5000rpm. With this sort of roll-on performance available, the six-speed gearbox can be left almost untouched as rapid, relaxed progress can be achieved using just top gear.
Smooth, beautifully-finished and mercifully free of electronic gimmickry, the Trophy is a machine from the traditional touring school of huge power harnessed in a rock-solid, stable chassis. When a bike is this right, year after year, it comes as no surprise that the only thing to be added for 2003 is a new colour option.
Graphite
Azure Blue
Sunset Red

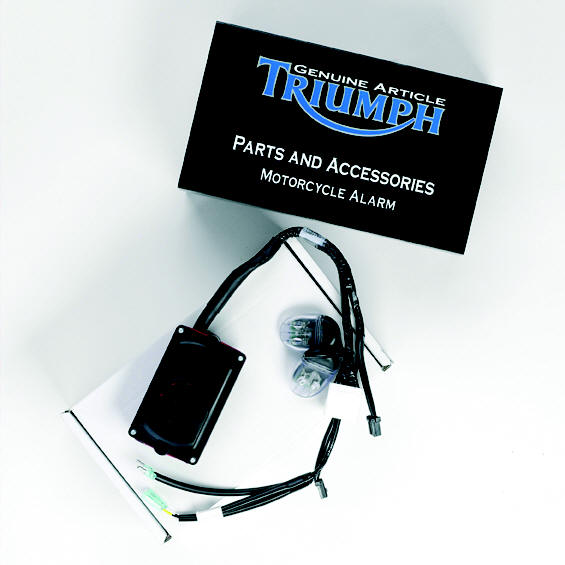

Alarm/Immobiliser (Thatcham Category MC1 compliant)
Colour Co-ordinated Top Box
Top Box Back Rest

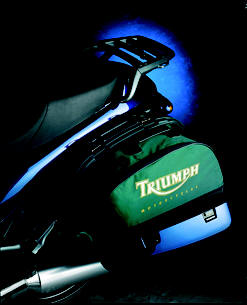

Pannier Inner Bags

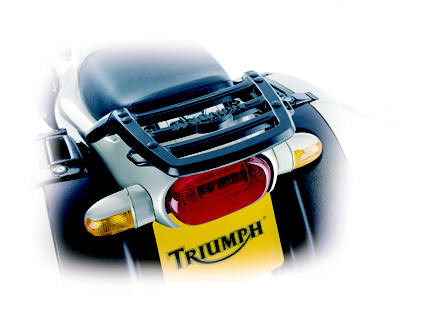

Luggage Rack
Foot Spoilers
Heated Grips
Front Mudguard Extension
Rear Mudguard Extension
Shop our online store TRIUMPHeSTORE.com
Hermy's is a Triumph Triple Connection Stocking Dealer
 |
 |
 |
 |
 |
 |
 |
 |
Click on thumbnail for full sized picture
|
|
ENGINE |
|
|
Type |
Liquid-cooled, DOHC, in-line 4-cylinder |
|
Capacity |
1180cc |
|
Bore/Stroke |
76 x 65mm |
|
Compression Ratio |
10.6:1 |
|
Fuel System |
4 x 36mm flat slide CV carburettors |
|
Ignition |
Digital – inductive type |
|
TRANSMISSION |
|
|
Primary Drive |
Gear |
|
Final Drive |
X ring chain |
|
Clutch |
Wet, multi-plate |
|
Gearbox |
6-speed |
|
CYCLE PARTS |
|
|
Frame |
Micro alloyed high tensile steel spine |
|
Swingarm |
Twin-sided, aluminium alloy with eccentric chain adjuster |
|
Wheels Front |
Alloy 3-spoke, 17 x 3.5in |
|
Rear |
Alloy 3-spoke, 17 x 5.5in |
|
Tyres Front |
120/70 ZR 17 |
|
Rear |
170/60 ZR 17 |
|
Suspension Front |
43mm forks with triple rate springs |
|
Rear |
Monoshock with adjustable preload and rebound damping |
|
Brakes Front |
Twin 310mm floating discs, 4 piston calipers |
|
Rear |
Single 255mm disc, 2 piston caliper |
|
DIMENSIONS |
|
|
Length |
2152mm (84.7in) |
|
Width (Handlebars) |
790mm (31.1in) |
|
Height |
1430mm (56.3in) |
|
Seat Height |
790mm (31.1in) |
|
Wheelbase |
1490mm (58.7in) |
|
Rake/Trail |
27°/105mm |
|
Dry Weight |
235kg (518lb) |
|
Fuel Tank Capacity |
25 litres (6.6 gal US) |
|
PERFORMANCE (Measured at crankshaft to DIN 70020) |
|
|
Maximum Power |
108PS (107bhp) at 9,000rpm |
|
Maximum Torque |
104Nm (77ft.lbf) at 5,000rpm |
|
Warranty |
2 years, unlimited mileage |
|
Service Intervals |
6000 miles or one year, whichever comes first |
|
|
|
