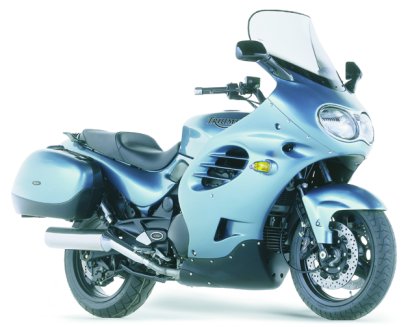

2002 Triumph Trophy

TRIUMPH TROPHY

The enduring Trophy is everything a serious touring rider could want in a motorcycle: a muscular, relaxed engine, incredible levels of long distance comfort, comprehensive weather protection and a capacious fully-integrated luggage system.

The robust 1180cc four-cylinder delivers a towering 104Nm (77ft.lbf) of torque at a mere 5000rpm reducing gear changing to a minimum and making rolling on the throttle the simplest way of ensuring rapid, relaxed progress. If ever an engine was renowned for effortless waves of power it’s the well-proven Trophy 1200 motor.

The highly protective, yet aerodynamically efficient fairing keeps tiring windblast to an absolute minimum taking the strain out of even the longest journey. Combined with a generous dual seat and thoughtful ergonomics, the Trophy is hard to beat for day-long comfort.

Detailing is as comprehensive as Triumph customers have a right to expect: with a top-quality custom-designed luggage system colour-matched to the enduring Sunset Red colour scheme or the two new options of Azure Blue and Emerald Green, the Trophy makes as striking and capable a super-tourer as ever.

Key Changes:

§ New Azure Blue and Emerald Green colour schemes

Colour Options:

§ Azure Blue

§ Sunset Red

§ Emerald Green

TRIUMPH ACCESSORIES

Integrated Alarm

L.E.D fitted as OE on bike
two circuit immobilisation
‘fail-safe’ engine immobilisation
‘hot-wire’ detection circuit
internal rechargeable battery
current draw of less than 5 mA
Thatcham MC1 approved

Colour co-ordinated Top Box
45 litre capacity
holds two full face helmets
direct mounting to rack

Aluminium Cast Top Rack
Pannier Inner Bags

Not Illustrated

Heated Grips
Front Mudguard Extension Kit
Rear Mudguard Extension Kit
Fork Protector Kit
Foot Spoiler Kit
Back Rest (to fit Top Box)
Tank Pad

Shop our online store TRIUMPHeSTORE.com

Hermy's is a Triumph Triple Connection Stocking Dealer




			Click on thumbnail for full sized picture

TROPHY SPECIFICATION
ENGINE
Type		Liquid-cooled, DOHC, in-line 4-cylinder
Capacity		1180cc
Bore/Stroke		76 x 65mm
Compression Ratio		10.6:1
Fuel System		4 x 36mm flat slide CV carburettors
Ignition		Digital - inductive type
TRANSMISSION
Primary Drive		Gear
Final drive		X ring chain
Clutch		Wet, multi-plate
Gearbox		6-speed
CYCLE PARTS
Frame		Micro alloyed high tensile steel spine
Swingarm		Twin-sided, aluminium alloy with eccentric chain adjuster
Wheels	Front Rear	Alloy 3 spoke, 17 x 3.5in Alloy 3 spoke, 17 x 5.5in
Tyres	Front Rear	120/70 ZR 17 170/60 ZR 17
Suspension	Front Rear	43mm forks with triple rate springs Monoshock with adjustable pre-load and rebound damping
Brakes	Front Rear	Twin 310mm discs, 4 piston calipers Single 255mm disc, 2 piston caliper
DIMENSIONS
Length		2152mm (84.7in)
Width (handlebars)		790mm (31.1in)
Height		1430mm (56.3in)
Seat Height		790mm (31.1in)
Wheelbase		1490mm (58.7in)
Rake / Trail		27º / 105mm
Weight (Dry)		235kg (518lb)
Fuel Tank Capacity		25 litres (6.6 gal US)
PERFORMANCE (Measured at crankshaft to DIN 70020)
Maximum Power		108PS (107bhp) at 9,000 rpm
Maximum Torque		104Nm (77ft.lbf) at 5,000 rpm
COLOURS		Azure Blue, Sunset Red, Emerald Green
WARRANTY		2 years, unlimited mileage
SERVICE INTERVALS		6000 miles or one year, whichever comes first
