Trophy

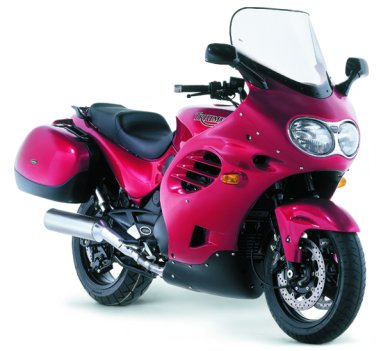

TRIUMPH TROPHY

For riders looking to travel long distances in comfort and style, with plenty of performance and enjoyment along the way, Triumph's Trophy tourer has plenty to offer - with a choice of 1180cc four-cylinder or 885cc three-cylinder power plant.

The trademark Trophy blend of excellent weather protection from a highly efficient full fairing, roomy riding position, generous dual-seat and top-quality integrated luggage system makes either model unbeatable for touring pleasure, whether solo or heavily loaded with a passenger and luggage.

Both engines are well suited to the Trophy, as they are noted for strong performance at low and medium engine speeds and yet also produce plenty of power at higher revs. The big 1180cc unit delivers a massive 104N.m (77ft.lb) of torque at just 5000rpm whilst the 855cc engine combines

smooth-revving power with addictive three-cylinder character.

For a dedicated tourer the Trophy is a very capable all-rounder, not least thanks to its outstanding sporting ability. A rigid steel frame, high-quality suspension and generous ground clearance combine to make Triumph's long-distance machine great fun on a twisty road.

Thoughtful detailing enhances the bike's appeal. From the powerful and visually striking chrome-rimmed twin headlamps, via the generously large fuel tank, to the colour co-ordinated and impressively capacious panniers - also available to match the new Sunset Red paint scheme - the Trophy is as efficient as it is enjoyable to ride.

NEW FEATURES FOR 2001

KEY FEATURES

Engine:

Chassis:

COLOUR OPTIONS

TRIUMPH ACCESSORIES

Not Illustrated

Shop our online store TRIUMPHeSTORE.com

Hermy's is a Triumph Triple Connection Stocking Dealer


TROPH_01.jpg (65626 bytes) TROPH_02.jpg (75613 bytes) TROPH_03.jpg (54259 bytes) TROPH_04.jpg (35011 bytes)
TROPH_06.jpg (46038 bytes) TROPH_05.jpg (36771 bytes) 01TROPH_01.jpg (52007 bytes) 01TROPH_03.jpg (43044 bytes)
thumbnail for
full sized picture





SPECIFICATION

ENGINE



Trophy 1200

Trophy 900

Type



Liquid-cooled, DOHC,

in-line 4-cylinder

Liquid-cooled, DOHC,

in-line 3-cylinder

Capacity



1180cc

885cc

Bore/Stroke



76 x 65mm

Compression Ratio



10.6:1

Fuel System



36mm flat slide CV carburettors

Ignition



Digital - inductive type

TRANSMISSION

Primary Drive



Gear

Final drive



X ring chain

Clutch



Wet, multi-plate

Gearbox



6-speed

CYCLE PARTS

Frame



Micro alloyed high tensile steel spine

Swingarm



Twin sided, aluminium alloy with eccentric chain adjuster

Wheels

Front

Rear

Alloy 3 spoke, 17 x 3.5in

Alloy 3 spoke, 17 x 5.5in

Tyres

Front

Rear

120/70 ZR 17

170/60 ZR 17

Suspension

Front

Rear

43mm forks with triple rate springs

Monoshock with adjustable preload and rebound damping

Brakes

Front

Rear

Twin 310mm discs, 4 piston calipers

Single 255mm disc, 2 piston caliper

DIMENSIONS



Length



2152mm (84.7in)

Width



790mm (31.1in)

Height



1430mm (56.3in)

Seat Height



790mm (31.1in)

Wheelbase



1490mm (58.7in)

Rake / Trail



27º / 105mm

Weight (Dry)



235kg (518lb)

220kg (485lb)

Fuel Tank Capacity



25 litres (6.6 gal US)

PERFORMANCE (measured to DIN 70020)

Maximum Power



108PS (107bhp)

at 9,000 rpm

98PS (97bhp) at 9,000 rpm

Maximum Torque



104Nm (77ft-lbf)

at 5,000 rpm

83Nm (61ft-lbf) at 6,500rpm

Service intervals              6000 miles
Warranty                       2 years unlimited mileage
Riders Association Triumph membership included
