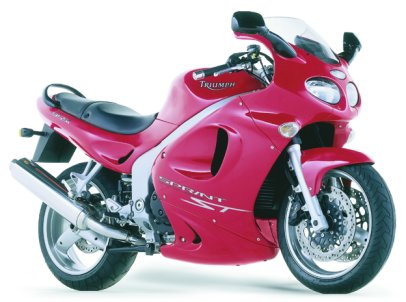

TRIUMPH SPRINT ST

Already regarded as one of the most versatile motorcycles in the world the 2002 Sprint ST benefits from the same heavily-revised engine fitted to the latest Speed Triple and the Sprint RS.

A machine as happy scratching through back lanes as it is hitting the continent on long hauls, the Sprint ST remains a firm favourite with riders who expect adaptability as a standard feature.

The hugely capable twin spar aluminium chassis and single-sided swing-arm remain unchanged. Clever touches like the two-position exhaust, either fixed high for added cornering clearance, or lower down to allow room for fitted luggage remain a reason why this bike is a favourite with serious riders. Only the graphics are changed to enhance the flowing lines and deep-finish colour scheme of the new machine.

The engine changes offer even more of the long-legged performance the Sprint ST is renowned for. The new 120bhp powerplant is identical to the new 955cc three-cylinder engine fitted to the new Speed Triple and Sprint RS. Employing high-pressure die-cast crankcases for both strength and lightness, the DOHC 12-valve liquid-cooled engine’s new cylinder head utilizes 1mm larger inlet valves and 1mm smaller exhaust valves, set at a narrower included angle. Both inlet and exhaust ports are redesigned for better gas flow and the new cast pistons run in steel liners. Compression ratio is up from 11.2:1 to 12:1.while crankcase breathing is revised to minimise power loss.  The new engine is 2.5kg lighter than before.

A larger airbox feeds the new closed loop fuel injection system which features smaller, lighter injectors, while compact, light plug-top ignition coils provide dependable high-intensity sparks. The closed-loop system features an oxygen sensor that monitors and adjusts the air: fuel ratio at varying engine speeds to optimise engine performance.  The fuel injection mapping is tuned for even more mid-range torque making the Sprint ST’s punchy three-cylinder performance even easier to use to the full.

As on the Speed Triple engine, the alternator is now located on the left-hand end of the crankshaft and the starter motor drive is located on the right. This layout, reduces noise, especially at idle, as there’s now no need for a gear-train to drive the alternator. And a revised claw-type gear-change mechanism gives a much smoother and more positive shift action.

The exhaust system has new headers and balance-pipe to further boost midrange output and for the German and Californian markets a secondary air injection system is fitted to minimise emissions.

Cooling and lubrication systems are revised with the coolant radiator featuring a thinner core, increasing efficiency without adding size or weight.

The Sprint ST is available in distinctive British Racing Green, cool Sapphire Blue and dashing Tornado Red.

Key changes:

§         New 120bhp third generation 955cc engine with increased torque.

§         New decals.

Colour Options:

§         Tornado Red

§         Sapphire Blue

§         British Racing Green


TRIUMPH APPROVED ACCESSORIES (Click on thumbnails for full size picture)

• Performance Silencer

• 2x2 weave hi-temp carbon fibre wrap
• thermal blanket protection
• nitro-tec hardened bracket
• stainless steel external construction
• bespoke fuel injection mapping

• Two box colour co-ordinated panniers

• integrated stylish design
• a full face helmet can be accommodated in either pannier
• slim line fitting

• Colour co-ordinated Top Box

• 45 litre capacity
• holds two full face helmets
• direct mounting to rack

• Throwover Panniers

• high visibility reflective edging
• 1250 denier polyester construction
• integrated, quick release panel protectors (also available separately)
• 24 litres capacity expandable to 48 litres

• Tankbag

• 14 litre expandable to 18 litres
• removable map pocket
• integral water resistant cover
• shoulder strap
• separate harness

• Integrated Alarm

• L.E.D fitted as OE on bike
• two circuit immobilisation
• ‘fail-safe’ engine immobilisation
• ‘hot-wire’ detection circuit
• internal rechargeable battery
• current draw of less than 5 mA
• Thatcham MC1 approved

• Higher screen

• 3 mm ‘Lexan’ (Polycarbonate) screen
• designed for high mileage touring capabilities
• increased wind protection for rider & pillion

• Pannier Inner Bags

• Master cylinder Guard

• Solo Seat Cowl

• Cast Aluminium Rear Rack

• Paddock Stand

• Optimate Battery Charger Adapter
• allows remote charging of motorcycle battery

• Heated Grips
• two position heat setting
• no visible external wiring when fitted

• Rear Hugger
• Back Rest (to fit Top Box)
• Front Mudguard Extension Kit
• Rear Mudguard Extension Kit
• Carbon Fibre Tank Pad

Shop our online store TRIUMPHeSTORE.com

Hermy's is a Triumph Triple Connection Stocking Dealer

				Click on thumbnail for full size picture



SPRINT ST SPECIFICATION
ENGINE
Type		Liquid-cooled, DOHC, in-line 3-cylinder
Capacity		955cc
Bore/Stroke		79 x 65mm
Compression Ratio		12.0:1
Fuel System		Multipoint sequential electronic fuel injection
Ignition		Digital -inductive type - via electronic engine management system
TRANSMISSION
Primary Drive		Gear
Final Drive		X ring chain
Clutch		Wet, multi-plate
Gearbox		6-speed
CYCLE PARTS
Frame		Aluminium beam perimeter
Swingarm		Single sided, aluminium alloy with eccentric chain adjuster
Wheels	Front Rear	Alloy 3 spoke, 17 x 3.5in Alloy 3 spoke, 17 x 6.0in
Tyres	Front Rear	120/70 ZR 17 180/55 ZR 17
Suspension	Front Rear	43mm forks with adjustable pre-load Monoshock with adjustable pre-load and rebound damping
Brakes	Front Rear	Twin 320mm floating discs, 4 piston calipers Single 255mm disc, 2 piston caliper
DIMENSIONS
Length		2160mm (85.0in)
Width (handlebars)		735mm (28.9in)
Height		1220mm (48.0in)
Seat Height		800mm (31.5in)
Wheelbase		1470mm (57.9in)
Rake / Trail		25º / 92mm
Weight (Dry)		207kg (456lb)
Fuel Tank Capacity		19.5 litres (5.1 gal US)
PERFORMANCE		(measured at crankshaft to DIN 70020)
Maximum Power		120PS (118bhp) at 9,100 rpm
Maximum Torque		100Nm (74ft.lbf) at 5,100 rpm
COLOURS		Tornado Red, Sapphire Blue, British Racing Green
WARRANTY		2 years; unlimited mileage
SERVICE INTERVALS		6000 miles or one year, whichever comes first
