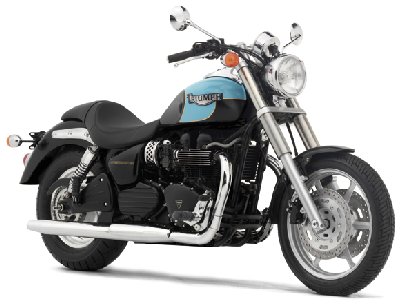

TRIUMPH SPEEDMASTER
Just as the America re-defined a lot of perceptions about cruising motorcycles, so the Speedmaster defines a fast-developing niche that exists for more performance-orientated cruisers.
The Speedmaster is built around the America’s proven low-slung chassis and 790cc twin-cylinder engine but has the tougher, pared-down look of a bare-knuckle hot rod. The DOHC eight-valve air-cooled engine uses the same 270° crankshaft firing interval as the America but vents through a pair of long, deep-chromed silencers. The satin-black engine finish adds a crisp edge to the Speedmaster’s handsome lines as does the slightly more aggressive riding position. High risers mount the flat ‘drag’ handlebars on the slab-style top yoke and match the chromed, forward-set footpegs.
Minimalism is key to the Speedmaster’s ethos. The rev-counter is mounted discretely on the fuel-tank nacelle while the large round white-faced speedo perches above the top-yoke. The tank itself holds 16.6 litres of fuel (4.4 gal US), giving a useful range. The Speedmaster’s paint options of Jet Black with Tornado Red or Racing Yellow infills are joined in 2004 with an infill of Sky Blue. Alternatively, for those who prefer simplicity, a plain Jet Black option is available.
Twin front discs – gripped by twin-piston calipers – haul the Speedmaster up hard. Cast wheels add style – the 18-inch front wears a 110/80 tyre, the nearly solid 15-inch rear a 170/80 - and the twin shocks and wide-style telescopic forks straighten the curves and iron out the bumps, giving a controlled and supple ride.
And if the Speedmaster’s bare bones want a little more flesh on them… the Triumph accessory range features an array of bolt-ons specifically designed to give the Speedmaster even more edge.
Specification changes for 2004:
- Two new paint schemes – An understated Jet Black singe-tone option and an eye-catching Jet Black and Sky Blue two-tone scheme.
Colour options:
-
Jet Black-
Jet Black / Sky Blue-
Jet Black / Tornado Red-
Jet Black / Racing YellowTriumph Accessories
(Click on Links below to Purchase Online) (Click on thumbnails for Full size Picture)
Chrome Aftermarket
Silencers – Short (for off-road use only)
Chrome Aftermarket Silencers – Full Length (for off-road use only)
Alarm/Immobiliser (Thatcham
Category MC1 compliant)
Slanted Leather
Panniers
Rectangular Leather
Panniers
Fabric
Panniers
Leather Tank
Cover
Summer
Screen
Roadster
Screen
Colour Co-ordinated Fly
Screen
Tinted Fly
Screen
Colour Co-ordinated Air
Dam
Colour Co-ordinated
Side Panel
Knee
Pads
Roadster
Seat
Solo
Seat
Touring
Seat
Pillion Touring
Pad
Front Seat Rail
Engine Dresser Bar
Kit
Analogue Clock
Low Sissy Bar Kit -
High Sissy Bar Kit -
Sissy Bar &
Rack
Chrome Rack (Seat Pad
Mount)
Light Bar & Light Kit
(Road legal in US only)
Footboard
Kit
Chrome Fork
Shrouds
Chrome
Cam Cover
Chrome Chain
Guard
Chrome Foot Control
Bar
Chrome
Battery Box Cover
Chrome Lower Yoke
Cover
Chrome Lifter Arm
Cover
Chrome Number Plate
Bracket
Chrome Rear Footrest
Hangers
Chrome Sprocket
Cover
Chrome Luggage
Rack
Chrome Rocker Gear
Lever
Single Seat Rear
Footrest Hanger Finishers
Custom Painted Bodywork
Various Tank
Badges
Tachometer
34PS Restrictor
Kit
Auxiliary Power
Socket
Shop our online store TRIUMPHeSTORE.com
Hermy's is a Triumph Triple Connection Stocking Dealer
 |
 |
 |
|
 |
 |
 |
 |
 |
Click on |
|
ENGINE |
|
|
Type |
Air-cooled, DOHC, parallel twin, 270° firing interval |
|
Capacity |
790cc |
|
Bore/Stroke |
86 x 68mm |
|
Compression Ratio |
9.2:1 |
|
Fuel System |
Twin carburettors, with throttle position sensor and electric carburettor heaters |
|
Ignition |
Digital – inductive type |
|
TRANSMISSION |
|
|
Primary Drive |
Gear |
|
Final Drive |
X ring chain |
|
Clutch |
Wet, multi-plate |
|
Gearbox |
5-speed |
|
CYCLE PARTS |
|
|
Frame |
Tubular steel cradle |
|
Swingarm |
Twin-sided, tubular steel |
|
Wheels Front |
Spoked, 18 x 2.5in |
|
Rear |
Spoked, 15 x 3.5in |
|
Tyres Front |
110/80 R 18 |
|
Rear |
170/80 R 15 |
|
Suspension Front |
41mm forks |
|
Rear |
Chromed spring twin shocks with adjustable preload |
|
Brakes Front |
Twin 310mm discs, 2 piston calipers |
|
Rear |
Single 285mm disc, 2 piston caliper |
|
DIMENSIONS |
|
|
Length |
2424mm (95.4in) |
|
Width (Handlebars) |
844mm (33.2in) |
|
Height |
1184mm (46.6in) |
|
Seat Height |
720mm (28.3in) |
|
Wheelbase |
1655mm (65.2in) |
|
Rake/Trail |
33.3°/153mm |
|
Dry Weight |
229kg (504lb) |
|
Fuel Tank Capacity |
16.6 litres (4.4 gal US) |
|
PERFORMANCE (Measured at crankshaft to DIN 70020) |
|
|
Maximum Power |
62PS (61bhp) at 7,400rpm |
|
Maximum Torque |
60Nm (44.3ft.lbf) at 3,500rpm |
|
Warranty |
2 years, unlimited mileage |
|
Service Intervals |
4000 miles or one year, whichever comes first |
|
|
|
