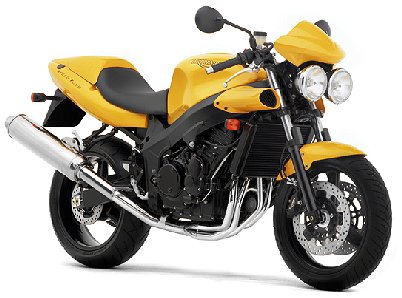

TRIUMPH SPEED FOUR
Drawn from the same athletic gene pool as the Daytona 600, but with something more than a little special added all of its own, the stunning Speed Four proves that it is all in the mix. And this mix, with its raucous engine, surgically precise handling, jaw-dropping styling and outrageous lines, sets the Speed Four a class apart.
Completely redefining how a ‘naked’ 600cc machine should perform, the Speed Four is a highly specified motorcycle with a sophisticated 599cc, DOHC, sixteen-valve, liquid-cooled, four-cylinder engine. Its cam profiles and EFI system are specifically designed to give a broad spread of mid-range torque and driveability. The slick six-speed gearbox allows maximum use of the engine’s output as does the Speed 4’s chassis.
The sweet-revving engine is housed in a sharp-handling aluminium frame, which blesses the Speed Four with razor-sharp and accurate steering plus plenty of ground clearance. Fully adjustable suspension front and rear provides a wide range of set-up options and up front a pair of massively powerful four-piston calipers clamp on 310mm floating discs. The rear wheel features a 220mm disc and lightweight single piston caliper.
The Speed Four then, combines near supersports performance with a truly unique look and style. From its distinctive pair of chromed headlights and compact instrument cluster, nestling behind the saucy little fly screen, to the twin air scoops and tasteful satin black finish on the frame, engine and swingarm, the Speed Four stands out. A varied choice of paint options - from understated Jet Black to retina-popping Roulette Green – are joined in 2004 by gorgeous Racing Yellow.
Specification changes for 2004:
- New vibrant Racing Yellow paint scheme.
Colour Options:
- Jet Black
- Racing Yellow
- Roulette Green
Alarm/Immobiliser (Thatcham
Category MC1 compliant)
Tank Bag
Throwover Panniers
Colour Co-ordinated Radiator Cowls
Colour Co-ordinated Belly Pan
Luggage Rack
Grab Rail
Rear Hugger
Carbon Fibre Tank Pad
Front Mudguard Extension
Rear Mudguard Extension
34PS Restrictor Kit
Shop our online store TRIUMPHeSTORE.com
Hermy's is a Triumph Triple Connection Stocking Dealer
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
Click on images for |
||
|
|
||
|
ENGINE |
||
|
Type |
|
Liquid-cooled, DOHC, in-line 4-cylinder |
|
Capacity |
|
599cc |
|
Bore/Stroke |
|
68 x 41.3mm |
|
Compression Ratio |
|
12.5:1 |
|
Fuel System |
|
Multipoint sequential electronic fuel injection with forced air induction |
|
Ignition |
|
Digital – inductive type – via electronic engine management system |
|
TRANSMISSION |
||
|
Primary Drive |
|
Gear |
|
Final Drive |
|
X ring chain |
|
Clutch |
|
Wet, multi-plate |
|
Gearbox |
|
6-speed |
|
CYCLE PARTS |
||
|
Frame |
|
Aluminium beam perimeter |
|
Swingarm |
|
Twin-sided, aluminium alloy |
|
Wheels |
Front |
Alloy 3-spoke, 17 x 3.5in |
|
|
Rear |
Alloy 3-spoke, 17 x 5.5in |
|
Tyres |
Front |
120/70 ZR 17 |
|
|
Rear |
180/55 ZR 17 |
|
Suspension |
Front |
43mm forks with dual rate springs and adjustable preload, compression and rebound damping |
|
|
Rear |
Monoshock with adjustable preload, rebound and compression damping |
|
Brakes |
Front |
Twin 310mm floating discs, 4 piston calipers |
|
|
Rear |
Single 220mm disc, single piston caliper |
|
DIMENSIONS |
||
|
Length |
|
2060mm (81.1in) |
|
Width (Handlebars) |
|
690mm (27.2in) |
|
Height |
|
1150mm (45.3in) |
|
Seat Height |
|
810mm (31.9in) |
|
Wheelbase |
|
1395mm (54.9in) |
|
Rake/Trail |
|
24.6º/89.1mm |
|
Weight (Dry) |
|
170kg (374lb) |
|
Fuel Tank Capacity |
|
18 litres (4.7 gal US) |
|
PERFORMANCE |
||
|
(MEASURED AT CRANKSHAFT TO DIN 70020) |
||
|
Maximum Power |
|
98PS (97bhp) at 11,750 rpm |
|
Maximum Torque |
|
68Nm (50.5ft.lbf) at 10,500 rpm |
