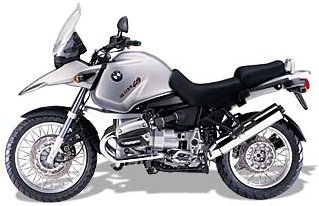

R 1150 GS
|
|
|
|
|
R 1150 GS |
 |
Somewhere beyond that asphalt highway there's a nameless unpaved road with your name on it. Sounds like the sort of place that the adventurous R 1150 GS was designed and engineered to go. It's got a torquey engine, dirt-worthy suspension, and the same six-speed tranny, first seen on the sporty R 1100 S. It's the perfect bike for when you want to get out of Dodge. Or ride to it, for that matter.
2000 Model Information
| Colors |
#736 Mandarin
#716 Night Black
#764 Titan Silver Metallic
| Standard Equipment |
Air / oil cooled, Boxer twin cylinder, 1130cc engine
Bosch Motronic MA 2.2 engine management
Electronic Fuel Injection
Three-way catalytic converter
Shaft drive
Telelever front suspension
Paralever rear suspension
ABS II antilock brake system
Valve cover protection and sump protection plate
Adjustable seat height (two positions)
Adjustable front brake and clutch levers
Heated hand grips
Single-key lock system for ignition, steering, fuel cap, seat storage
compartment locks
Rider Information Display (oil temp., fuel indicator, clock, gear gauge)
Saddlebag mounting brackets
Hazard warning flashers
Power accessory socket
Center stand
| Optional Equipment |
Shop Online for Optional Equipment at BMWeStore.Com
| MSRP |
$14,190*
*Actual retail price determined by retailer. Price excludes
taxes, license, options, and handling charges. MSRP includes equalized freight
charges. Details and specifications are subject to change.
| Engine | |
| Type | Air cooled / oil cooled twin cylinder |
| Bore x stroke | 101 mm x 70.5 mm |
| Displacement | 1130 cc |
| Horsepower | 85 bhp @ 6750 rpm |
| Torque | 71 lb.-ft. @ 5250 rpm |
| Compression ratio | 10.3:1 |
| Valve gear | HC, chain-driven |
| Valves | 2 x 34 mm intake / 2 x 29 mm exhaust |
| Valve timing (measured at 3 mm valve clearance) |
Intake opens 1 degrees after TDC Intake closes 25 degrees after BDC Exhaust opens 31 degrees before BDC Exhaust closes 13 degrees before TDC |
| Valves per cylinder | Four |
| Camshafts | 284 degrees |
| Engine oil capacity | 4 quarts of SF, SG motor oil, also w/CC or CD |
| Engine oil filter | Spin-on Micronic filter cartridge |
| Carburetion | Fuel injection and electronic ignition MA 2.2 |
| Ignition | Controlled by Bosch Motronic MA 2.2 |
| Fuel demand | Unleaded, middle-grade premium, 90 (AKI) |
| Fuel tank | Steel tank with enclosed fuel pump & filter |
| Fuel capacity | 5.8 U.S. gallons including 1 gal. reserve |
| Air Filter | Paper-type element |
| Charging system | 14 V, 50 Amp Alternator (700 W) |
| Battery | BMW Mareg, 12V-14 Amp/h low maintenance |
| Cooling system | Combined air/oil cooled |
| Drivetrain | |
| Primary drive | Helical-cut gears with tensioner |
| Clutch | 165 mm dry, single plate with diaphram spring |
| Gear ratios | 1st gear: 2.04:1 2nd gear: 1.60:12.91:1 3rd gear: 1.26:1 4th gear: 1.03:1 5th gear: 10.90:1 6th gear: .697:1 |
| Drive system | Enclosed driveshaft with two universal joints and integral torsional damper |
| Final drive | Spiral bevel gears, 2.82:1 ratio |
| Frame and Suspension | |
| Frame | Three-section frame concept with reinforced rear |
| Front suspension | "Light" Telelever with central spring strut. Progressive coil spring. Twin-tube gas-filled shock |
| Travel / dimensions | 7.46 inches total travel, 5-position preload |
| Rear suspension | Patented BMW Paralever swingarm & shaft drive, single shock with variable rebound damping |
| Travel / dimensions | 7.81 inches total travel, hydraulic adjusts. 40 positions |
| Brakes | |
| Brake system | BMW / FAG anti-lock brake system ABS II |
| Front brakes | Two 4-piston calipers, wear compensation |
| Front rotors | Dual 12.0 inch floating rotors |
| Actuation method | Hydraulic, DOT 4 fluid type |
| Rear brake | One 4-piston caliper, floating mount |
| Rear rotor | Single 10.9 inch diameter fixed rotor |
| Actuation method | Hydraulic, DOT 4 fluid type |
| Wheels and Tires | |
| Front wheel | 2.50 x 19 MT-H2, Patented Cross Spoke Wheels |
| Rear wheel | 4.00 x 17 MT-H2, Patented Cross Spoke Wheels |
| Front tire | 110/80 - R 19 (59H) tubeless |
| Rear tire | 150/70 - R 17 (69H) tubeless |
| Dimensions | |
| Overall length | 86.2 inches (2189 mm) |
| Overall width | 35.88 inches (920 mm) (over mirrors) |
| Wheelbase | 58.85 inches (1509 mm) (unladen) |
| Ground clearance | 7.8 inches (200 mm) (unladen) |
| Seat height | 33.1 / 33.8 inches (840 / 860 mm) |
| Handlebar width | 35.5 inches (903 mm) |
| Steering angle | 62.9 degrees |
| Front wheel trail | 4.5 inches (115 mm) (unladen) |
| Weight - dry | 480 lbs. |
| Weight - wet | 536 lbs. |
| Maximum load | 1014 lbs. gross vehicle weight rating |
| Wheel load limits | Front = 397 lbs. Rear = 661 lbs. |
| Top Speed | Over 121 mph (194km/h). |
Subject to change without notice
Copyright 2000 BMW of North America, Inc. All rights reserved
