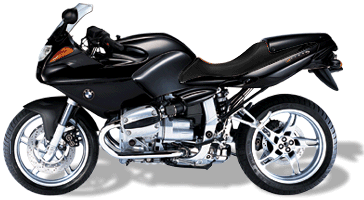

R 1100 S
|
|
|
|
|
R 1100 S |
 |
A simple flick of the wrist sends a bullet rush of adrenaline coursing through your body. With 98 horses of pure Boxer power on tap, that's to be expected. As is amazingly agile and refined handling, thanks to the advanced Telelever suspension and power train. And you can hardly ignore the quick-stopping triple disc brakes. Add to that trick looks, and you might just need to take a ride through a cold rain shower to cool off.
2000 Model Information
| Colors |
#736 Mandarin Orange
#716 Night Black
#735 Bright Red
#747 Mandarin / Silver
| Standard Equipment |
Air / oil cooled, Boxer twin cylinder, 1085cc engine
Bosch Motronic MA 2.4 engine management
Electronic Fuel Injection
Three-way catalytic converter
Shaft drive
Telelever front suspension
Paralever rear suspension
Seat cowling
Adjustable front brake and clutch levers
Integral sports half-fairing with windshield
Single-key lock system for ignition, steering, fuel cap, seat storage
compartment locks
Hazard warning flashers
Center stand (not on R 1100 SA Special model)
| Optional Equipment |
ABS II antilock brake system
Sport-suspension package*
Larger 5.5-inch rear tire*
*Available only on the Mandarin / Silver two-tone paint
Shop Online for Optional Equipment at BMWeStore.Com
| MSRP |
$13.990*
$15,600* -with ABS II
$16,400* -Mandarin / Silver two-tone paint with sport-suspension package, ABS
II, 5.5-inch rear wheel
*Actual retail price determined by retailer. Price excludes
taxes, license, options, and handling charges. MSRP includes equalized freight
charges. Details and specifications are subject to change.
| Engine | |
| Type | Air cooled / Oil cooled twin cylinder |
| Bore x stroke | 99 mm x 70.5 mm |
| Displacement | 1085 cc |
| Horsepower | 98 bhp @ 7500 rpm |
| Torque | 70 lb.-ft. @ 5750 rpm |
| Compression ratio | 11.3:1 |
| Valve gear | HC, chain-driven |
| Valves | 2 x 34 mm intake / 2 x 29 mm exhaust |
| Valve timing (measured at 3 mm valve clearance) |
Intake opens 5 degrees after TDC Intake closes 33 degrees after BDC Exhaust opens 27 degrees before BDC Exhaust closes 5 degrees before TDC |
| Valves per cylinder | Four |
| Camshafts | 300 degrees |
| Engine oil capacity | 4.3 quarts of SG, SH motor oil, also w/CD or CE |
| Engine oil filter | Spin-on Micronic filter cartridge |
| Carburetion | Fuel injection and electronic ignition MA 2.4 |
| Ignition | Controlled by Bosch Motronic |
| Fuel demand | Unleaded, premium, 91 (AKI) |
| Fuel tank | Aluminum tank with enclosed fuel pump & filter |
| Fuel capacity | 4.75 U.S. gallons including 1 gal. reserve |
| Air Filter | Plate type |
| Charging system | 14 V, 50 Amp Alternator (600 W) |
| Battery | BMW Mareg, 15 Amp/h low maintenance |
| Cooling system | Combined air/oil cooled |
| Drivetrain | |
| Primary drive | Helical-cut gears with tensioner |
| Clutch | 165 mm dry, single plate with hydraulic action |
| Gear ratios | 1st gear: 2.045:1 2nd gear: 1.600:1 3rd gear: 1.267:1 4th gear: 1.038:1 5th gear: 0.900:1 6th gear: 0.800:1 |
| Drive system | Enclosed driveshaft with two universal joints and integral torsional damper |
| Final drive | Spiral bevel gears, 2.75:1 ratio |
| Frame and Suspension. | |
| Frame | New 3-section frame concept |
| Front suspension | Light Telelever with central spring strut. Progressive coil spring and variable rebound damping. |
| Travel / dimensions | 4.33 inches / 35 mm fixed tube diameter |
| Rear suspension | Patented BMW Paralever swingarm & shaft drive, single shock with variable rebound damping |
| Travel / dimensions | 5.12 inches, progressive spring, hydraulic preload adjustment |
| Brakes | |
| Brake system | Optional BMW / FAG anti-lock brake system ABS II |
| Front brakes | Two 4-piston calipers, wear compensation |
| Front rotors | Dual 12.0 inch floating rotors |
| Actuation method | Hydraulic, DOT 4 fluid type |
| Rear brake | Hydraulically operated single disc |
| Rear rotor | Single 10.9 inch diameter fixed rotor |
| Actuation method | Hydraulic, DOT 4 fluid type |
| Wheels and Tires | |
| Front wheel | 3.50 x 17 MT-H2, cast alloy |
| Rear wheel | 5.00 x 17 MT-H2, cast alloy 5.50 x 17 on Special model |
| Front tire | 120/70 - ZR 17 tubeless |
| Rear tire | 170/60 - ZR 17 tubeless |
| Dimensions | |
| Overall length | 85.8 inches (2180 mm) |
| Overall width | 22.8 inches (580 mm) (across footrest) |
| Wheelbase | 58.2 inches (1478 mm) (unladen) |
| Ground clearance | 5.9 inches (150 mm) (unladen) |
| Seat height | 31.5 inches (800 mm) |
| Handlebar width | 29.9 inches (760 mm)(with weights) |
| Steering angle | 65 degrees |
| Front wheel trail | 3.9 inches (100 mm) (unladen) |
| Weight - dry | 487 lbs. |
| Weight - wet | 504 lbs. |
| Maximum load | 992 lbs. gross vehicle weight rating |
| Wheel load limits | Front = 260 lbs. Rear = 245 lbs. |
| Top Speed | Over 124 mph (200 km/h) |
Subject to change without notice
Copyright 2000 BMW of North America, Inc. All rights reserved
