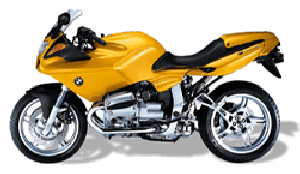

R 1100 S
Sport
|
R 1100 S Sport |
|
 |
1999 Model Information
R 1100 S ABS
This is a new model for 1999. It will arrive in your showrooms soon. Available in two different models and three different colors.
Colors: 716 Night Black, 735 Bright Red, 736 Mandarin, 747 Titan
Silver
Seat Color: Black
Standard Equipment: Integral sport touring faring, ABS II anti lock brake
system, Telelever, Paralever, Catalytic converter stainless steel exhaust, center stand,
power accessory socket, bag mounts and single key lock system. Roadside Assistance Package
& MSF Riding Course is also included.
Optional Accessory Suggestions: Saddlebags, heated grips, different handle bars.
Retail Price: $15,600
R 1100 S
This is a new model for 1999. Same sweet package listed above, less the ABS brakes, bag mounts, and heated grips.
Colors: 716 Night Black, 735 Bright Red, 736 Mandarin, 747 Titan
Silver
Seat Color: Black
Standard Equipment: Integral sport touring faring, Telelever, Paralever,
Catalytic converter stainless steell exhaust, center stand, power accessory socket, bag
mounts and single key lock system. Roadside Assistance Package & MSF Riding Course is
also included.
Optional Accessory Suggestions: Saddlebags, heated grips, different handle bars.
Retail Price: $13,900.00
1999 BMW R 1100 S ABS - facts and figures:
Importer: BMW of North America, Inc.
Manufacturer: BMW AG, Munich, Germany
R 1100 S - Mfr.'s Suggested Retail Price: *$13,990.00
R 1100 SA - Mfr.'s Suggested Retail Price: *$15,600.00
*Actual Price Determined by Dealer
*Price excludes taxes,license, options, and handling charges.
*MSRP includes equalized freight charges
| Engine | |
| Type | Air cooled / oil cooled twin cylinder |
| Bore x stroke | 99 mm x 70.5 mm |
| Displacement | 1085 cc |
| Horsepower | 98 bhp @ 7500 rpm |
| Torque | 70 lb.-ft. @ 5750 rpm |
| Compression ratio | 11.3:1 |
| Valve gear | HC, chain-driven |
| Valves | 2 x 34 mm intake / 2 x 29 mm exhaust |
| Valve timing (measured at 3 mm valve clearance) |
intake opens 5 degrees after TDC intake closes 33 degrees after BDC exhaust opens 27 degrees before BDC exhaust closes 5 degrees before TDC |
| Valves per cylinder | four |
| Camshafts | 300 degrees |
| Engine oil capacity | 4.3 quarts of SG, SH motor oil, also w/CD or CE |
| Engine oil filter | spin-on Micronic filter cartridge |
| Carburetion | fuel injection and electronic ignition MA 2.4 |
| Ignition | controlled by Bosch Motronic |
| Fuel demand | unleaded, premium, 91 (AKI) |
| Fuel tank | Aluminum tank with enclosed fuel pump & filter |
| Fuel capacity | 4.75 U.S. gallons including 1 gal. reserve |
| Air Filter | Plate type |
| Charging system | 14 V, 50 Amp Alternator (700 W) |
| Battery | BMW Mareg, 15 Amp/h low maintenance |
| Cooling system | combined air/oil cooled |
| Drivetrain | |
| Primary drive | helical-cut gears with tensioner |
| Clutch | 165 mm dry, single plate with hydraulic action |
| Gear ratios | 1st gear: 2.045:1 2nd gear: 1.600:1 3rd gear: 1.267:1 4th gear: 1.038:1 5th gear: 0.900:1 6th gear: 0.800:1 |
| Drive system | enclosed driveshaft with two universal joints and integral torsional damper |
| Final drive | spiral bevel gears, 2.75:1 ratio |
| Frame and Suspension. | |
| Frame | New 3-section frame concept |
| Front suspension | Telelever with central spring strut. Progressive coil spring and variable rebound damping. |
| Travel / dimensions | 4.33 inches / 35 mm fixed tube diameter |
| Rear suspension | Patented BMW Paralever swingarm & shaft drive, single shock with variable rebound damping |
| Travel / dimensions | 5.12 inches, progressive spring, hydraulic preload adjustment |
| Brakes | |
| Brake system | BMW / FAG anti-lock brake system ABS II |
| Front brakes | two 4-piston calipers, wear compensation |
| Front rotors | dual 12.0 inch floating rotors |
| Actuation method | hydraulic, DOT 4 fluid type |
| Rear brake | hydraulically operated single disc |
| Rear rotor | single 10.9 inch diameter fixed rotor |
| Actuation method | hydraulic, DOT 4 fluid type |
| Wheels and Tires | |
| Front wheel | 3.50 x 17 MT-H2, cast alloy |
| Rear wheel | 5.00 x 17 MT-H2, cast alloy |
| Front tire | 120/70 - ZR 17 tubeless |
| Rear tire | 170/60 - ZR 17 tubeless |
| Dimensions | |
| Overall length | 85.8 inches (2180 mm) |
| Overall width | 22.8 inches (580 mm) (across footrest) |
| Wheelbase | 58.2 inches (1478 mm) (unladen) |
| Ground clearance | 5.9 inches (150 mm) (unladen) |
| Seat height | 31.5 inches (800 mm) |
| Handlebar width | 29.9 inches (760 mm)(with weights) |
| Steering angle | 65 degrees |
| Front wheel trail | 3.9 inches (100 mm) (unladen) |
| Weight - dry | 487 lbs. |
| Weight - wet | 504 lbs. |
| Maximum load | 992 lbs. gross vehicle weight rating |
| Wheel load limits | Front = 260 lbs. Rear = 245 lbs. |
Subject to change without notice
Copyright 1999 BMW of North America, Inc. All rights reserved
