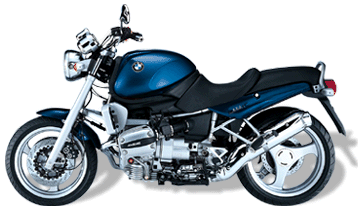

Note the 5.5-gallon steel fuel tank. Comfortable saddle. Trademark opposed Boxer twin and drive shaft. Yep, there's no mistaking this bike for anything other than a BMW. As expected, it's got versatility coming out the exhaust. Thanks to rock-solid handling and plenty of throaty torque, it can pull triple duty as a pick-up-a-gallon-of-milk bike, a corner carver, or even mile gobbler. Think of it as an 80-horsepower chameleon.
2000 Model Information
| Colors |
#689 Mystic Red
#704 Graphite Metallic
#744 Pacific Blue Metallic
#763 Graphite Metallic & Ice Blue with yellow stripping
| Standard Equipment |
Air / oil cooled, Boxer twin cylinder, 1085cc engine
Bosch Motronic MA 2.2 engine management
Electronic Fuel Injection
Three-way catalytic converter
High mounted stainless steel muffler
Shaft drive
Telelever front suspension
Paralever rear suspension
Adjustable seat height (three positions)
Adjustable front brake lever
Integrated ignition and steering lock
Single-key lock system for ignition, steering, fuel cap, seat storage
compartment locks
Saddlebag mounting brackets
Hazard warning flashers
Power accessory socket
Center stand
| Optional Equipment |
ABS II antilock brake system
Shop Online for Optional Equipment at BMWeStore.Com
| MSRP |
$10,400*
$11,990 with ABS II
*Actual retail price determined by retailer. Price excludes taxes, license, options, and handling charges. Details and specifications are subject to change.
 |
 |
|
 |
 |
Click on thumbnail for full size picture |
| Engine | |
| Type | Air cooled / Oil cooled twin cylinder, 4-stroke |
| Bore x stroke | 99 mm x 70.5 mm |
| Displacement | 1085 cc |
| Horsepower | 80 bhp @ 6750 rpm |
| Torque | 72 lb.-ft @ 5250 rpm |
| Compression ratio | 10.3:1 |
| Valve gear | HC, chain-driven |
| Valves | 2x36 mm intake / 2x31 mm exhaust |
| Valve timing (measured at 3 mm valve clearance) |
Intake opens 10 degrees after TDC Intake closes 36 degrees after BDC Exhaust opens 35 degrees before BDC Exhaust closes 3 degrees before TDC |
| Valves per cylinder | Four |
| Camshafts | 300 degrees |
| Engine oil capacity | 4 quarts of SF, SG motor oil, also w/CC or CD |
| Engine oil filter | Spin-on Micronic filter cartridge |
| Carburetion | Fuel injection and electronic ignition MA 2.2 |
| Ignition | Controlled by Bosch Motronic |
| Fuel demand | Unleaded, middle-grade premium, 90 (AKI) |
| Fuel tank | Steel tank with enclosed fuel pump & filter |
| Fuel capacity | 5.5 U.S. gallons including 1 gal. reserve |
| Air Filter | Paper-type element |
| Charging system | 14 V, 50 Amp Alternator (700 W) |
| Battery | BMW Mareg, 19.5 Amp/h low maintenance |
| Cooling system | Combined air/oil cooled |
| Drivetrain | |
| Primary drive | Helical-cut gears with tensioner |
| Clutch | 180 mm dry, single plate with diaphram spring |
| Gear ratios | 1 st gear: 4.16:1 2nd gear: 2.91:1 3rd gear: 2.13:1 4th gear: 1.74:1 5th gear: 1.45:1 |
| Drive system | Enclosed driveshaft with two universal joints and integral torsional damper |
| Final drive | Spiral bevel gears, 3.0:1 ratio (33/11) |
| Frame and Suspension | |
| Frame | New 3-section frame concept |
| Front suspension | Telelever with central spring strut. Linear-rate coil spring. Twin-tube gas-filled. |
| Travel / dimensions | 4.72 inches total travel |
| Rear suspension | Patented BMW Paralever swingarm & shaft drive, single shock with variable rebound damping |
| Travel / dimensions | 5.31 inches total travel, 7-position preload |
| Brakes | |
| Brake system | Optional BMW / FAG anti-lock brake system ABS II |
| Front brakes | Two 4-piston calipers, wear compensation |
| Front rotors | Dual 12.0 inch floating rotors |
| Actuation method | Hydraulic, DOT 4 fluid type |
| Rear brake | One 4-piston caliper, floating mount |
| Rear rotor | Single 10.9 inch diameter fixed rotor |
| Actuation method | Hydraulic, DOT 4 fluid type |
| Wheels and Tires | |
| Front wheel | 3.50 x 17 MT-H2, cast alloy, 3-spoke U-profile |
| Rear wheel | 4.50 x 18 MT-H2, cast alloy, 3-spoke U-profile |
| Front tire | 120/'70 - ZR 17 tubeless |
| Rear tire | 160/60 - ZR 18 tubeless |
| Dimensions | |
| Overall length | 85.68 inches (2197 mm) |
| Overall width | 35.02 inches (898 mm) (over mirrors) |
| Wheelbase | 57.99 inches (1487 mm) (unladen) |
| Ground clearance | 5.38 inches (1 38 mm) (unladen) |
| Seat height | 29.9 / 30.7 / 31.5 inches (760 / 780 / 800 mm) |
| Handlebar width | 29.68 inches (761 mm)(with weights) |
| Steering angle | 64 degrees |
| Front wheel trail | 4.68 inches (120 mm) (unladen) |
| Weight - dry | 482 lbs |
| Weight - wet | 518 lbs |
| Maximum load | 990 lbs. gross vehicle weight rating |
| Wheel load limits | Front = 396 lbs. Rear = 660 lbs. |
| Top Speed | 121 mph (195 km/h) |
Subject to change without notice
Copyright 2000 BMW of North America, Inc. All rights reserved
